√ Class 1 Human Eye Safety
√ Small size&light weight
√ low-power consumption
√ 5km high-precision distance measurement
√ Through extreme temperature testing
√ Can be used in UVAs, rangefinder and other photoelectric systems.
Description
Product Characteristics

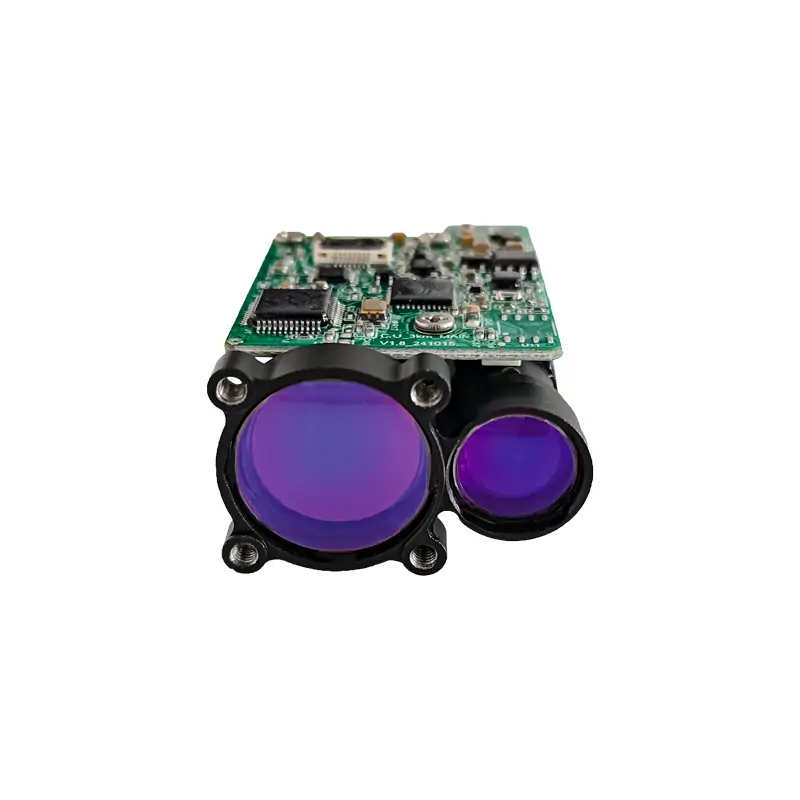

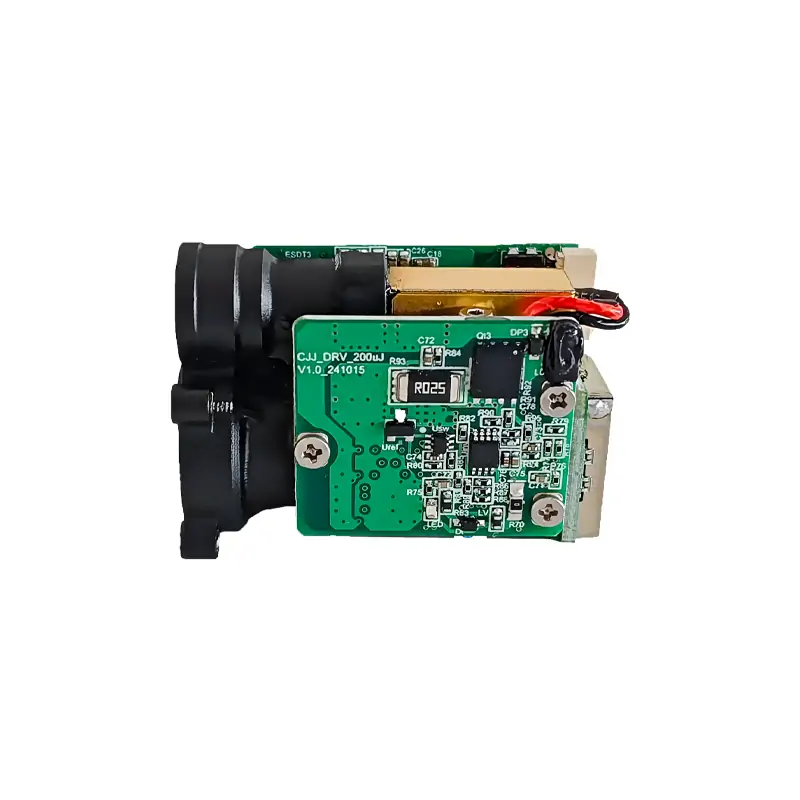

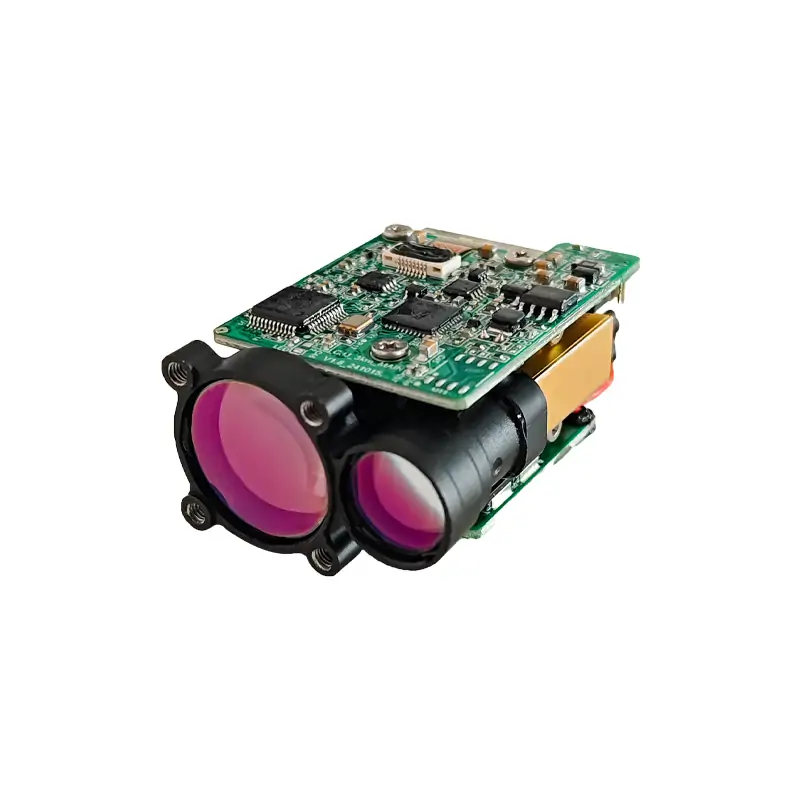

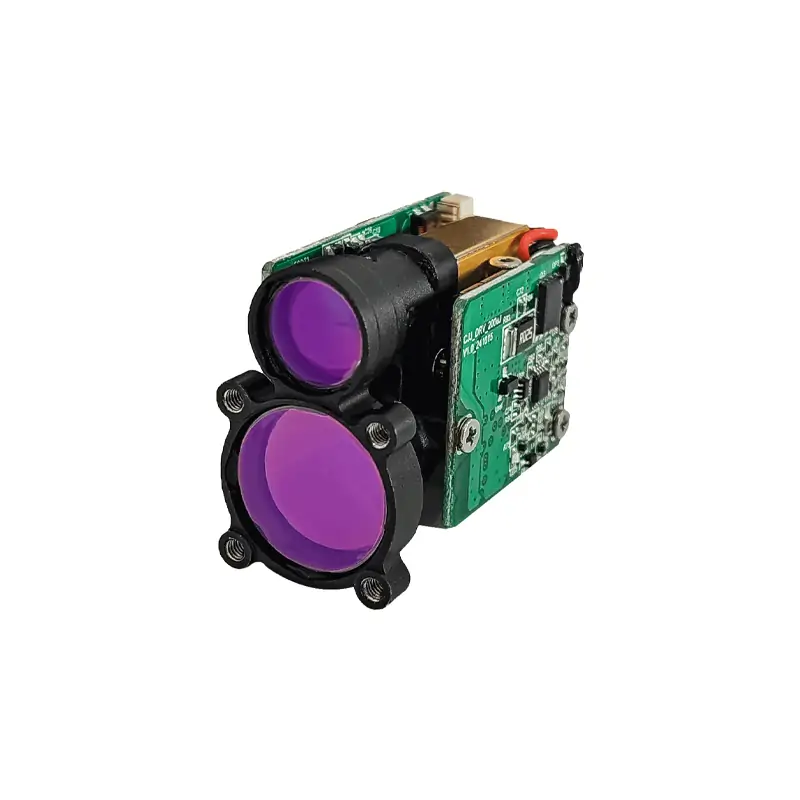

The ELRF-E16 laser rangefinder module is a laser ranging module developed based on our company’s independently researched and developed 1535nm erbium laser.It adopts a single-pulse Time-of-Flight (TOF) ranging method with a maximum ranging distance of ≥5km.Composed of a laser,transmitting optical system,receiving optical system,and control circuit board,it communicates with the host computer through a TTL serial port.It provides host computer test software and communication protocols, facilitating user secondary development.It boasts features such as small size,light weight,stable performance,high shock resistance,and Class 1 eye safety.
Product Function
The ELRF-E16 laser rangefinder consists of a laser,a transmitting optical system,a receiving optical system and a control circuit.
Visibility under the conditions of visibility is not less than 20km,humidity ≤ 80%,for large targets(buildings)ranging distance ≥ 6km;For vehicles(2.3m×2.3m target,diffuse reflectance ≥ 0.3)ranging distance ≥ 5km;For personnel (1.75m× 0.5m target plate target,diffuse reflectance ≥ 0.3)ranging distance ≥ 3km.
The ELRF-E16 Main functions:
a)single ranging and continuous ranging;
b)Range strobe,front and rear target indication;
c)Self-test function.
Specifications
| Item | Parameter |
| Wavelength | 1535nm±5nm |
| Laser divergence Angle | ≤0.3mrad |
| Continuous ranging frequency | 1~10Hz adjustable |
| Ranging capacity | ≥6km(Building) |
| ≥5km(vehicles target@2.3m×2.3m) | |
| ≥3km(personnel target@1.75m×0.5m) | |
| Ranging accuracy | ≤±1m |
| Accuracy | ≥98% |
| Minimum measuring range | ≤15m |
| Ranging resolution | ≤30m |
| Power supply voltage | DC5V~28V |
| Weight | <40g |
| Power consumption | standby power consumption ≤0.15W |
| average power consumption ≤1W | |
| peak power consumption ≤3W | |
| Size | ≤50mm×23mm×33.5mm |
| Operating temperature | -40℃ ~+60 ℃ |
| Storage temperature | -55℃ ~+70 ℃ |
Interface Description
- Communication interface: RS422, baud rate 115 200 bps (default)
- Electrical interface: connector A1002WR-S-10P
Operating Precautions
- The module emits 1535 nm laser radiation that is Class-1 eye-safe. Nevertheless, deliberate direct eye exposure should be avoided.
- Always cover the receive lens while aligning the three optical axes; excessive return energy can permanently destroy the detector.
- The module is NOT hermetically sealed. Operate only in clean environments with relative humidity < 80 % to prevent laser damage.
- Maximum range depends on atmospheric visibility and target reflectivity. Fog, rain, dust or sand reduce range. Highly reflective objects (green foliage, white walls, exposed limestone) increase range; large beam-to-target angles decrease it.
- NEVER fire the laser at highly reflective targets such as glass or white walls within 15 m; the intense return pulse can destroy the APD.
- NEVER connect or disconnect cables while the unit is powered.
- Observe correct power-supply polarity; reversal will cause permanent damage.
